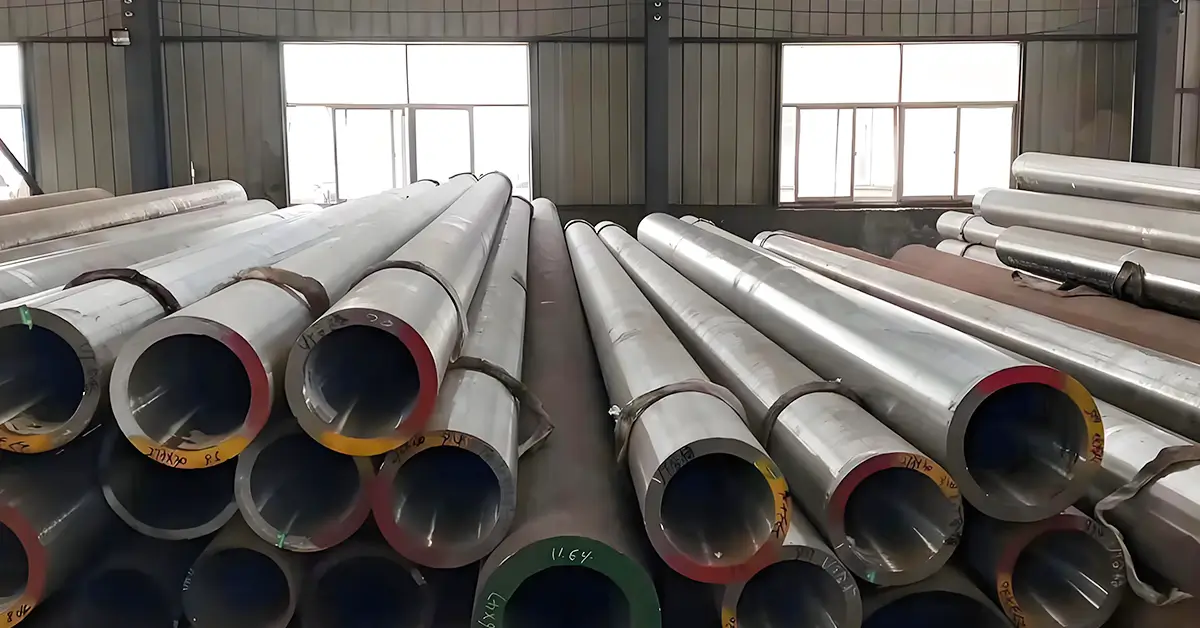

Alloy Steel A335 P91 Pipe
High-Performance Martensitic Alloy for Ultra-Supercritical Power Generation
ASTM A335 P91, known as "9 Chrome 1 Moly Modified," is a premium martensitic alloy steel specifically engineered for high-temperature creep strength. By adding Vanadium, Niobium, and Nitrogen to the 9% Chromium base, P91 provides significantly higher allowable stress levels than standard P22. This allows for reduced pipe wall thickness, lower thermal fatigue, and superior performance in temperatures reaching up to 650°C. It is the gold standard for main steam lines and high-pressure headers in modern ultra-supercritical power stations and advanced petrochemical refineries.
Technical Specifications
| Feature | Details |
|---|---|
| Standards | ASTM A335 / ASME SA335 |
| Grade | P91 (Martensitic Alloy Steel) |
| Size Range | 1/2" NB to 36" NB |
| Schedules | SCH 80, SCH 160, SCH XXS (Special Heavy Walls) |
| Manufacturing | Seamless (Hot Finished / Cold Drawn) |
| Heat Treatment | Normalized (1040°C - 1080°C) & Tempered (730°C - 800°C) |
Mechanical Properties
| Property | Value (Min) |
|---|---|
| Yield Strength (0.2% Offset) | 415 MPa (60,000 psi) |
| Tensile Strength | 585 MPa (85,000 psi) |
| Elongation | 20% |
| Hardness (Brinell) | 190 - 250 HBW |
Chemical Composition (%)
| Element | A335 P91 Percentage |
|---|---|
| Carbon (C) | 0.08 - 0.12 |
| Chromium (Cr) | 8.00 - 9.50 |
| Molybdenum (Mo) | 0.85 - 1.05 |
| Vanadium (V) | 0.18 - 0.25 |
| Niobium (Nb) | 0.06 - 0.10 |
| Nitrogen (N) | 0.03 - 0.07 |
| Manganese (Mn) | 0.30 - 0.60 |
| Silicon (Si) | 0.20 - 0.50 |
Features and Benefits of Alloy Steel P91 Pipe
- Exceptional high-temperature creep strength allowing for thinner wall designs
- Superior resistance to thermal fatigue and oxidation in ultra-high heat
- Enhanced corrosion resistance due to high Chromium content (9%)
- Improved weldability when using strictly controlled pre-heat and post-weld treatments
- Significant reduction in overall piping weight for large-scale boiler systems
- Highly stable micro-structure resulting from V and Nb additions
- Optimized for long-term service in ultra-supercritical thermal power plants
Applications & Uses
Ultra-Supercritical Plants
Standard material for main steam lines operating under intense thermal stress.
Petro-Chemical Refineries
Used in high-pressure cracking units and catalytic reformers.
Steam Headers
Primary choice for reheat piping and advanced boiler components.
