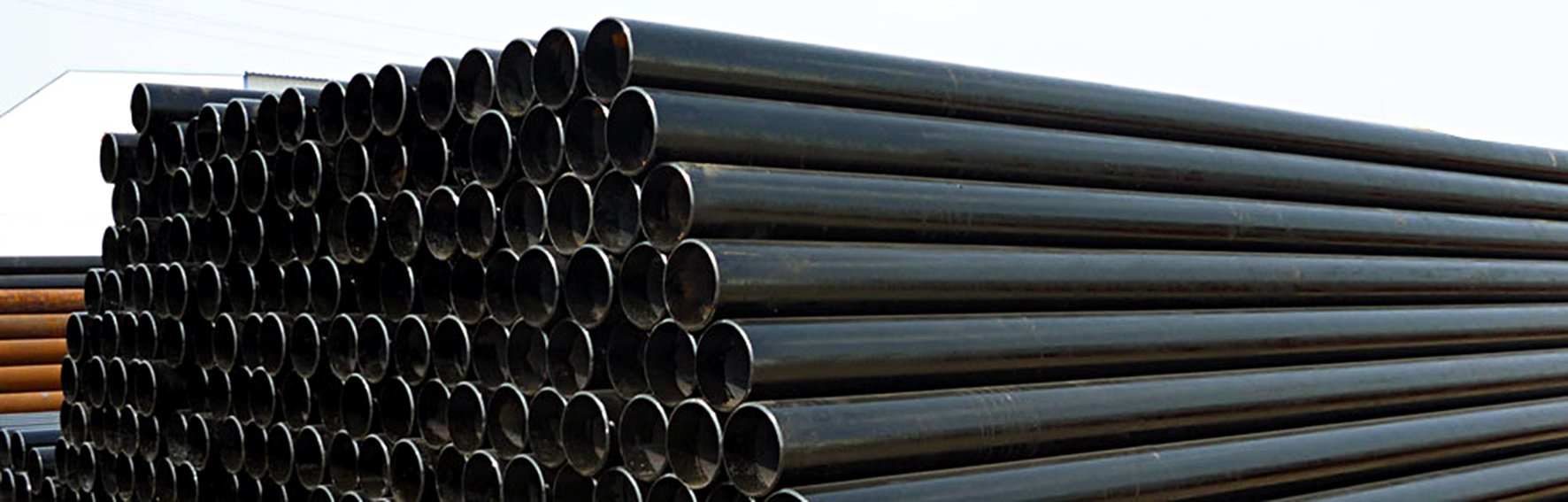

ASTM A53 Grade B Carbon Steel Pipe
General Purpose Steel Pipe for Steam, Water, Gas, and Air Lines
ASTM A53 Pipe (also referred to as ASME SA53 pipe) is intended for mechanical and pressure applications and is also acceptable for ordinary uses in steam, water, gas, and air lines. It is suitable for welding and for forming operations involving coiling, bending, and flanging. Grade B is the most common specification and is available in three types: Type F (Furnace-butt welded), Type E (Electric-resistance welded), and Type S (Seamless).
Technical Specifications
| Feature | Details |
|---|---|
| Standard | ASTM A53 / ASME SA53 |
| Grade | Grade B (Type E, Type S, Type F) |
| Size Range | 1/8" NB to 26" NB |
| Wall Thickness | SCH 10, 20, 30, 40, 80, 120, 160, STD, XS, XXS |
| Manufacturing | Seamless and Welded (ERW) |
| Ends | Plain, Beveled, Threaded & Coupled |
Mechanical Properties
| Property | ASTM A53 Grade B Value |
|---|---|
| Yield Strength (Min) | 35,000 psi (240 MPa) |
| Tensile Strength (Min) | 60,000 psi (415 MPa) |
| Elongation | Refer to ASTM A53 standard table |
Chemical Composition (%)
| Element | Type S (Seamless) | Type E & F (Welded) |
|---|---|---|
| Carbon (C) | 0.30% max | 0.30% max |
| Manganese (Mn) | 1.20% max | 1.20% max |
| Phosphorus (P) | 0.05% max | 0.05% max |
| Sulphur (S) | 0.045% max | 0.045% max |
| Copper (Cu) | 0.40% max | 0.40% max |
| Nickel (Ni) | 0.40% max | 0.40% max |
| Chromium (Cr) | 0.40% max | 0.40% max |
Features and Benefits of ASTM A53 Pipe
- Versatile application in low-pressure plumbing and mechanical systems
- High weldability suitable for structural and fluid transport use
- Reliable performance in steam, gas, and air line applications
- Available in galvanized coating for enhanced atmospheric corrosion resistance
- Easy to thread and couple for quick mechanical installations
- Cost-effective choice for general infrastructure piping
- Capable of withstanding moderate bending and flanging operations
- Robust manufacturing standards ensuring consistent wall thickness
Applications & Uses
HVAC & Plumbing
Widely used for chilled water, hot water, and general plumbing systems in buildings.
Fire Protection
Preferred for fire sprinkler systems due to its durability and pressure rating.
Structural
Applied in low-stress structural supports, handrails, and fencing infrastructure.
