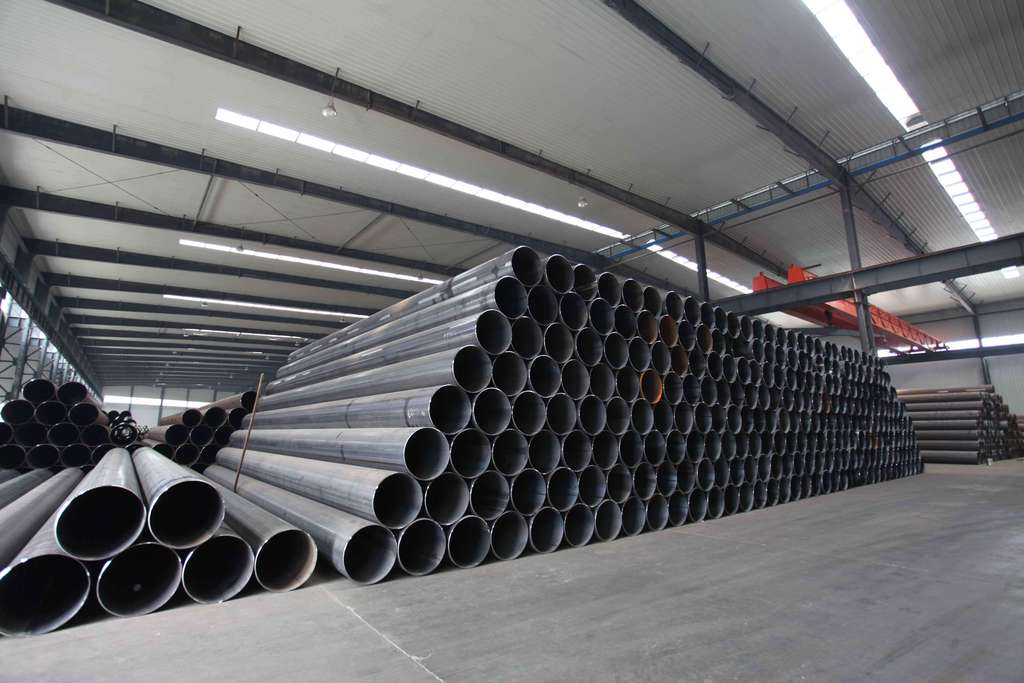

ASTM A672 EFW Pipe
Electric-Fusion-Welded Steel Pipe for High-Pressure Service
ASTM A672 is the standard specification for electric-fusion-welded (EFW) steel pipe, fabricated from pressure-vessel quality plate of several analyses and strength levels. These pipes are intended for high-pressure service at moderate temperatures. Similar to A671, A672 is used primarily for large-diameter piping where high structural integrity and the ability to handle high internal pressures are required. It is widely used in steam lines and chemical processing units.
Technical Specifications
| Feature | Details |
|---|---|
| Standard | ASTM A672 / ASME SA672 |
| Grades (Plate) | A45, A50, A55, B60, B65, B70, C55, C60, C65, C70 |
| Classes | CL 10, 11, 12, 13, 20, 21, 22, 30, 31, 32 |
| Outer Diameter | 16" to 100" NB (Large Diameter) |
| Wall Thickness | 6.35mm to 100mm |
| Testing | Charpy V-Notch, Radiography, Hydrostatic |
Common Grade Properties (Based on Plate)
| Grade | Plate Type | Min. Yield Strength | Min. Tensile Strength |
|---|---|---|---|
| B60 | ASTM A515 Gr. 60 | 32,000 psi (220 MPa) | 60,000 psi (415 MPa) |
| B70 | ASTM A515 Gr. 70 | 38,000 psi (260 MPa) | 70,000 psi (485 MPa) |
| C70 | ASTM A516 Gr. 70 | 38,000 psi (260 MPa) | 70,000 psi (485 MPa) |
Heat Treatment Classes
| Class | Heat Treatment | X-Ray Examination |
|---|---|---|
| Class 12 | None (As-rolled) | Full Radiography |
| Class 22 | Normalized | Full Radiography |
| Class 32 | Stress Relieved | Full Radiography |
| Class 42 | Normalized & Tempered | Full Radiography |
Features and Benefits of ASTM A672 Pipe
- Optimized for high-pressure fluid and steam transportation
- Broad variety of strength levels based on the parent plate material
- Superior weld joint quality with full radiographic testing options
- High resistance to deformation under moderate thermal stress
- Large-diameter availability for heavy industrial transmission lines
- Customizable wall thickness to meet specific project pressure ratings
Applications & Uses
Steam Lines
Ideal for main steam and auxiliary steam lines in large-scale power plants.
Chemical Process
Applied in processing units where high pressure and moderate temperatures are constant.
Refineries
Primary choice for high-pressure gas gathering and hydrocarbon process piping.
