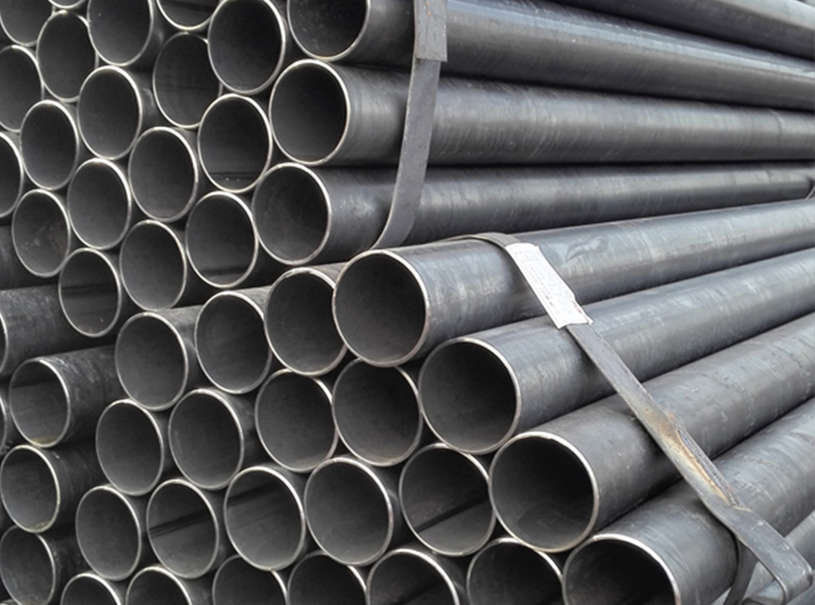

IS 3589 Fe 410 Pipe
High-Strength Large-Diameter Pipes for Heavy-Duty Infrastructure
IS 3589 Fe 410 is a high-tensile grade of mild steel electric-fusion-welded and submerged arc welded pipe. With a minimum tensile strength of 410 MPa, this grade is specifically designed for large-scale projects that demand higher pressure ratings and greater structural load capacity than the standard Fe 330. These pipes are the backbone of cross-country water transmission, industrial cooling systems, and critical civil engineering piling, providing a reliable balance of high strength and excellent weldability.
Technical Specifications
| Feature | Details |
|---|---|
| Standard | IS 3589 : 2001 |
| Grade | Fe 410 (High Tensile Grade) |
| Diameter Range | 8" NB to 60" NB |
| Thickness Range | 3.0 mm to 25.0 mm |
| Manufacturing | ERW / HFW / LSAW / HSAW (Spiral) |
| Surface Protection | Epoxy Lining, 3LPE, Bitumen, Galvanized |
Mechanical Properties
| Property | IS 3589 Fe 410 Value |
|---|---|
| Tensile Strength (Min) | 410 MPa |
| Yield Strength (Min) | 235 MPa to 250 MPa (Grade Dependent) |
| Elongation (Min %) | 15% to 18% |
| Internal Pressure Test | Hydrostatic testing as per IS 3589 standards |
Chemical Composition (%)
| Element | Percentage (Max) |
|---|---|
| Carbon (C) | 0.20% max |
| Manganese (Mn) | 1.30% max |
| Phosphorus (P) | 0.045% max |
| Sulphur (S) | 0.045% max |
Features and Benefits of IS 3589 Fe 410 Pipe
- Superior tensile strength for handling higher internal fluid pressures
- Enhanced structural capacity for large-scale civil engineering foundations
- Highly reliable weld integrity suitable for long-distance pipelines
- High resistance to deformation under heavy soil or external loads
- Precision engineering ensuring uniform diameter for better site alignment
- Compatible with advanced internal and external corrosion-resistant coatings
- Long operational lifespan in demanding municipal and industrial environments
Applications & Uses
Bulk Transmission
Primary choice for main water transmission lines across cities and states.
Industrial Cooling
Used in circulating water systems for power plants and large manufacturing units.
Structural Casing
Ideal for deep foundational piling, bridge piers, and structural tunnel supports.
