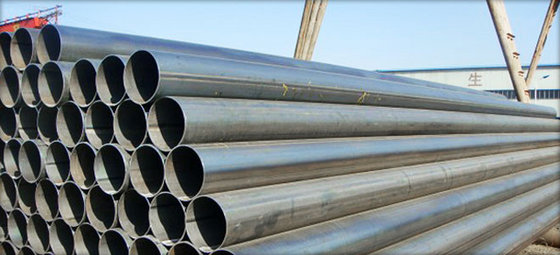

IS 3589 Fe 330 Pipe
Large-Diameter Steel Pipes for Water, Sewage, and Structural Utility
IS 3589 Fe 330 is a standard specification for large-diameter mild steel electric resistance welded (ERW) and submerged arc welded (SAW) pipes. Designed primarily for the conveyance of water, gas, and sewage, the Fe 330 grade refers to the minimum tensile strength of the material (330 MPa). These pipes are widely used in massive infrastructure projects across India, offering a cost-effective solution for high-volume fluid transport and structural piling.
Technical Specifications
| Feature | Details |
|---|---|
| Standard | IS 3589 : 2001 |
| Grade | Fe 330 (Tensile Strength 330 MPa) |
| Nominal Size | 8" NB to 60" NB (Large Diameter Pipes) |
| Wall Thickness | 2.0 mm to 25.0 mm |
| Type | ERW / HFW / SAW / Spiral Welded |
| Coatings | Coal Tar Epoxy, 3LPE, Cement Mortar, Bitumen |
Mechanical Properties
| Property | IS 3589 Fe 330 Value |
|---|---|
| Tensile Strength (Min) | 330 MPa |
| Yield Strength (Min) | Refer to specific sub-grade (Approx. 195-210 MPa) |
| Elongation (Min %) | 15% to 20% (Based on sample type) |
| Weld Integrity | Subjected to Ultrasonic and Hydrostatic testing |
Chemical Composition (%)
| Element | Percentage (Max) |
|---|---|
| Carbon (C) | 0.20% max |
| Manganese (Mn) | 1.30% max |
| Phosphorus (P) | 0.045% max |
| Sulphur (S) | 0.045% max |
Features and Benefits of IS 3589 Fe 330 Pipe
- Ideal for ultra-large diameter infrastructure where high fluid volume is required
- Excellent weldability for on-site joining in large pipeline projects
- Customizable lengths and thicknesses to meet specific hydraulic designs
- Highly compatible with various protective coatings for underground longevity
- Cost-efficient material for municipal drainage and sewage systems
- Strong structural rigidity suitable for bridge piers and foundational piling
- Rigorous hydrostatic testing ensures leak-proof performance over long distances
Applications & Uses
Water Supply
Primary choice for bulk water transmission from dams to treatment plants.
Sewage & Drainage
Widely used in city-wide sewage mains and industrial effluent discharge.
Foundational Piling
Applied in large-scale civil engineering as casing pipes and structural piles.
