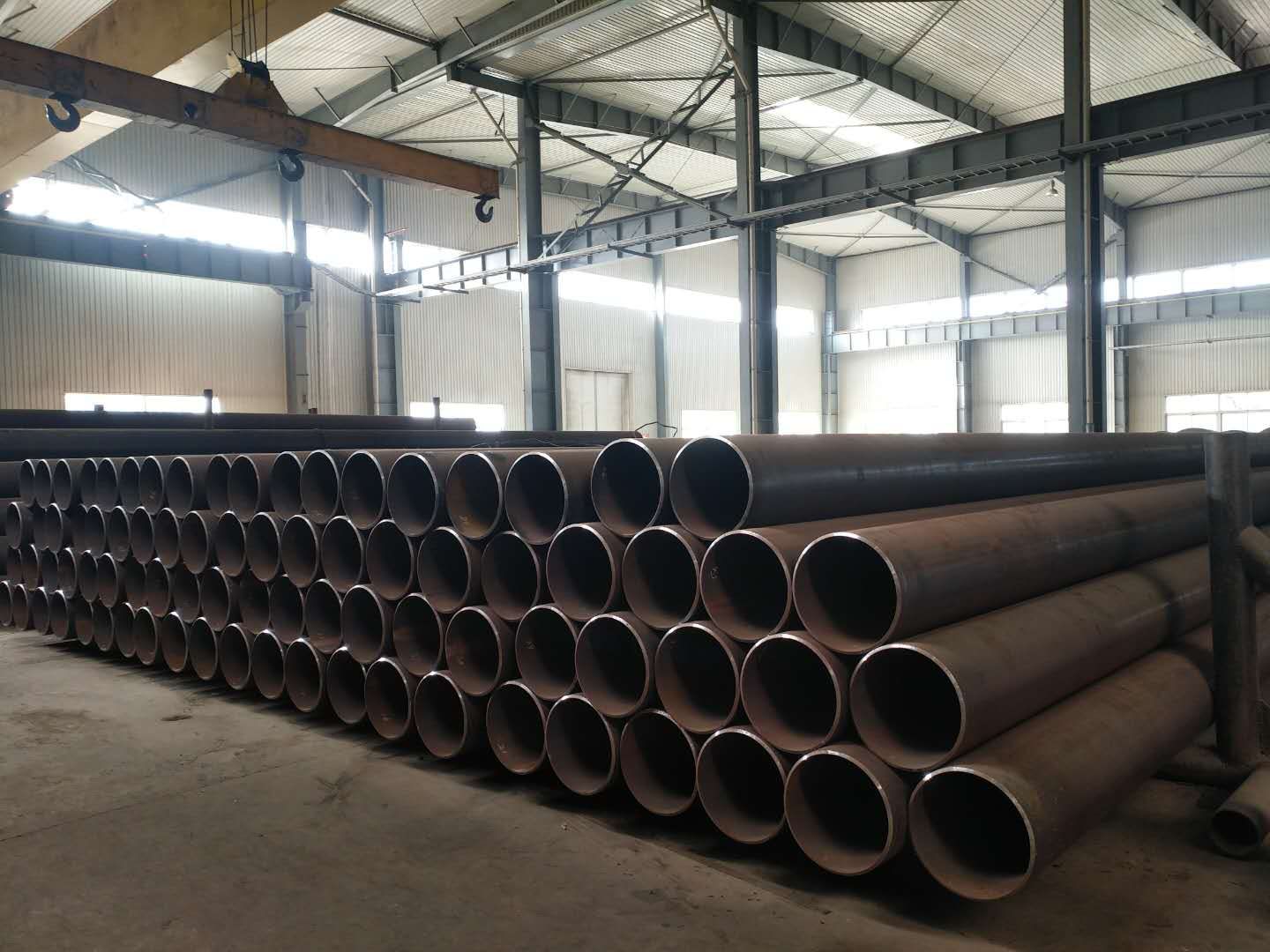

API 5L X56 Pipe
Heavy-Duty API 5L X56 (L390) Line Pipe Solutions
API 5L X56 Pipe (L390) is a premium grade designed for high-pressure transmission in the energy sector. Offering a minimum yield strength of 56,600 psi (390 MPa), it fills the critical gap between standard utility pipes and ultra-high-strength line pipes. X56 is frequently specified for projects where the environmental conditions require high fracture toughness and resistance to internal corrosion without sacrificing weldability.
Technical Specifications
| Feature | Details |
|---|---|
| Standard | API SPEC 5L / ISO 3183 / EN 10208 |
| Grade | X56 or L390 / PSL1 / PSL2 |
| Dimensions | 1/2" to 48" (Outer Diameter) |
| Wall Thickness | 2.0mm to 100mm (SCH 40, 80, 160, XXS) |
| Type | ERW, Seamless, LSAW, SSAW |
| End Finish | Plain, Beveled, Threaded, Coupled |
Mechanical Properties
| Property | X56 (PSL1) | X56 (PSL2) |
|---|---|---|
| Min Yield Strength | 56,600 psi (390 MPa) | 56,600 psi (390 MPa) |
| Max Yield Strength | None | 79,100 psi (545 MPa) |
| Min Tensile Strength | 71,100 psi (490 MPa) | 71,100 psi (490 MPa) |
| Max Tensile Strength | None | 110,200 psi (760 MPa) |
Chemical Composition (Maximum %)
| Element | PSL1 (X56) | PSL2 (X56) |
|---|---|---|
| Carbon (C) | 0.28% | 0.22% |
| Manganese (Mn) | 1.40% | 1.40% |
| Phosphorus (P) | 0.030% | 0.025% |
| Sulphur (S) | 0.030% | 0.015% |
| Silicon (Si) | - | 0.45% |
| Niobium (Nb) | 0.05% | 0.05% |
| Titanium (Ti) | 0.04% | 0.04% |
Features and Benefits of API 5L X56 Pipe
- High yield strength supporting lower wall thickness for weight saving
- Exceptional resistance to crack initiation and propagation
- Micro-alloyed composition (Nb, V, Ti) for superior grain refinement
- Compliant with sour service requirements in PSL2 (NACE MR0175)
- High ductility and impact resistance even at sub-zero temperatures
- Advanced dimensional accuracy for perfect field welding alignment
- Compatible with high-grade anti-corrosive coatings like 3LPP and FBE
- Reliable performance in remote, challenging geographical terrains
Applications & Uses
Crude Oil
Essential for mid-stream pipeline projects transporting crude oil to refinery hubs.
Terrain Piping
Used in mountainous or arctic regions where environmental stress is high.
Energy Plants
Crucial for high-pressure cooling and steam transfer in large-scale power facilities.
