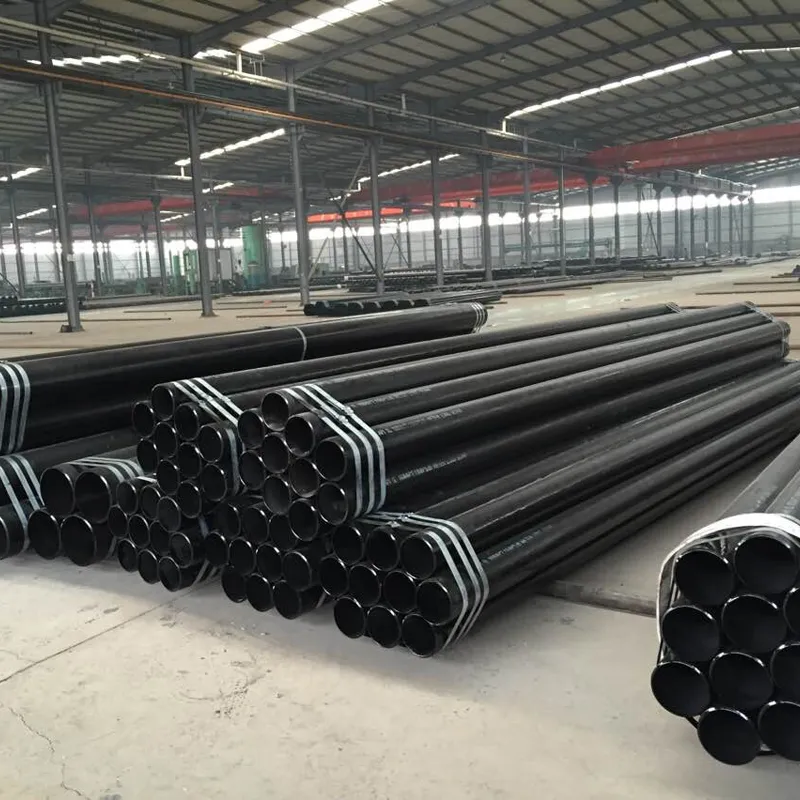

ASTM A572 Grade 50 Pipe
High-Strength Low-Alloy (HSLA) Columbium-Vanadium Structural Steel
ASTM A537 Grade 50 is a popular high-strength, low-alloy (HSLA) steel used in structural applications where a higher strength-to-weight ratio is required. By alloying with Columbium (Niobium) or Vanadium, Grade 50 provides a higher yield strength (50,000 psi) than standard A36 carbon steel while maintaining excellent weldability and atmospheric corrosion resistance. It is the industry standard for structural tubing, heavy machinery, and construction infrastructure.
Technical Specifications
| Feature | Details |
|---|---|
| Standard | ASTM A572 / ASME SA572 |
| Grade | Grade 50 (Type 1, 2, 3, or 5) |
| Yield Strength | 50,000 psi (345 MPa) Min |
| Tensile Strength | 65,000 psi (450 MPa) Min |
| Shape | Round, Square, Rectangular Tubing & Pipe |
| Manufacturing | Welded (ERW) or Seamless |
Mechanical Properties
| Property | ASTM A572 Grade 50 Value |
|---|---|
| Yield Strength (Min) | 50,000 psi (345 MPa) |
| Tensile Strength (Min) | 65,000 psi (450 MPa) |
| Elongation (in 8 in.) | 18% Min |
| Elongation (in 2 in.) | 21% Min |
Chemical Composition (%)
| Element | Percentage (Max unless specified) |
|---|---|
| Carbon (C) | 0.23% max |
| Manganese (Mn) | 1.35% max |
| Phosphorus (P) | 0.04% max |
| Sulphur (S) | 0.05% max |
| Silicon (Si) | 0.40% max |
| Columbium (Nb) | 0.005 - 0.05% |
| Vanadium (V) | 0.01 - 0.15% |
Features and Benefits of A572 Grade 50 Pipe
- Higher yield strength allows for reduced material thickness and weight
- Excellent weldability and formability for heavy-duty fabrication
- Cost-effective HSLA grade providing superior structural integrity
- Good atmospheric corrosion resistance compared to plain carbon steel
- High notch toughness making it reliable in dynamic loading conditions
- Ideal for construction projects requiring high strength-to-weight ratios
Applications & Uses
Infrastructure
Widely used in bridge components, building columns, and heavy structural frameworks.
Heavy Equipment
Primary choice for construction machinery, crane booms, and transport equipment frames.
Transmission
Applied in transmission towers, lighting poles, and communication infrastructure.
