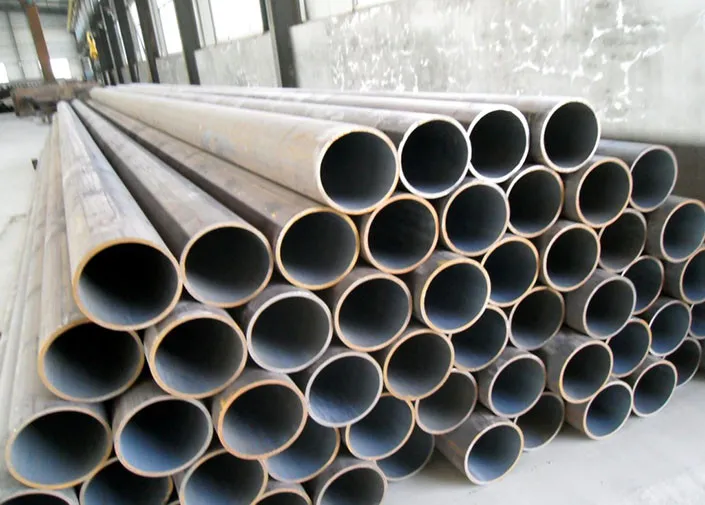

ASTM A513 Pipe
High-Precision Electric-Resistance-Welded Mechanical Steel Tubing
ASTM A513 is the standard specification for electric-resistance-welded (ERW) carbon and alloy steel tubing intended for use as mechanical tubing. Unlike pressure pipes, A513 is manufactured to much tighter outside diameter (OD), wall thickness, and straightness tolerances. It is produced from either hot-rolled or cold-rolled steel and is the preferred choice for applications requiring high aesthetic quality, close tolerances, and specific strength-to-weight ratios in the automotive, furniture, and agricultural industries.
Technical Specifications
| Feature | Details |
|---|---|
| Standard | ASTM A513 / ASME SA513 |
| Types | Type 1 (HR), Type 2 (CR), Type 5 (DOM) |
| Common Grades | 1008, 1010, 1020, 1026 |
| Shape | Round, Square, Rectangular, Special Shapes |
| Size Range | 1/2" to 15" Outside Diameter |
| Manufacturing | Electric Resistance Welded (ERW) |
Mechanical Properties (Typical)
| Grade | Yield Strength (Min) | Tensile Strength (Min) | Elongation (%) |
|---|---|---|---|
| 1010 (MT) | 32,000 psi (220 MPa) | 45,000 psi (310 MPa) | 15% |
| 1020 (MT) | 38,000 psi (260 MPa) | 55,000 psi (380 MPa) | 12% |
| 1026 (DOM) | 60,000 psi (415 MPa) | 70,000 psi (485 MPa) | 10% |
Chemical Composition (%)
| Element | 1020 Grade Percentage |
|---|---|
| Carbon (C) | 0.17 - 0.23% |
| Manganese (Mn) | 0.30 - 0.60% |
| Phosphorus (P) | 0.035% max |
| Sulphur (S) | 0.035% max |
Features and Benefits of ASTM A513 Tubing
- Exceptional dimensional accuracy for precision machining and assembly
- Smooth surface finish ideal for powder coating, painting, or plating
- DOM (Drawn Over Mandrel) options for superior wall uniformity and concentricity
- Highly versatile—available in square, rectangular, and custom profiles
- Excellent strength-to-weight ratio for weight-sensitive engineering projects
- Easy to bend, flare, and weld using standard fabrication techniques
- Consistent hardness and mechanical properties throughout the tube length
Applications & Uses
Automotive
Used in roll cages, chassis components, steering columns, and exhaust hangers.
Furniture
Primary choice for high-end metal furniture frames, storage racks, and displays.
Agriculture
Applied in tractor frames, conveyor systems, and farm implement structural parts.
